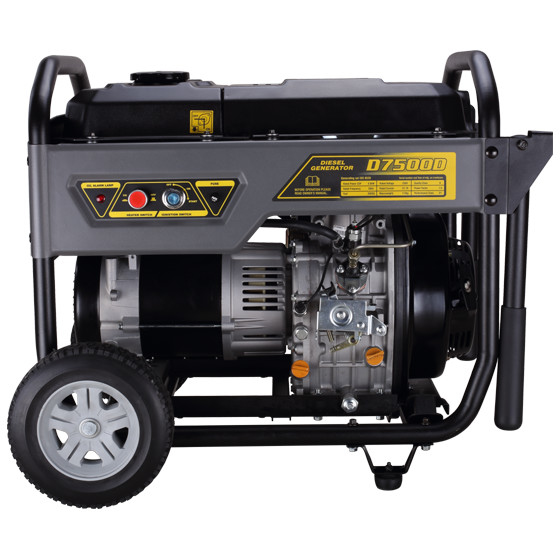

LONCIN LCD7500D Diesel Generator
The adoption of a solenoid valve for controlling the oil line makes the operation more reliable.
Strong power: equipped with Loncin’s brand new LCD188FD diesel engine, which possesses a number of patents, its discharge capacity and power top those similar products available on the market.ing the oil line makes the operation more reliable.
Easier to start: the diesel generator unit is easier to start.
The air inlet uses the heating plug to heat the inflow of air, thus to start in low temperature environment is no longer an issue.
The control engine unit and electrical control unit are designed individually with multi-function instrument to digitally display real-time voltage, frequency and service hours.
Easy maintenance: the diesel generator unit employs an external air filter and open type lubricant filler & discharge outlet and no cover is needed, making maintenance, repair and disassembly easier than ever.
The splittype detachable panel is adopted that inspection and maintenance services can be carried out without disassembling the entire unit. Plunger pump fuel injection makes the pump smaller and the structure simpler, thus it is easy for maintenance.
| Net Weight (Kg) | 102 | Displacement (cc) | 462 |
|---|---|---|---|
| Fuel Tank Capacity (L) | 14.5 | Starting system | Recoil start/Electric start |
| Dimensions (mm) | 685x520x595 | Voltage Outlets (Sockets) | (1 x 115V 16A 1 x 115V 32A 1 X 230V 32A) |
| Engine Model | LC188F/D460F | Continuing time (h) | 7-Oct |
| Model | 7500 | Noise | - |
