Code: LX3271
Loading...

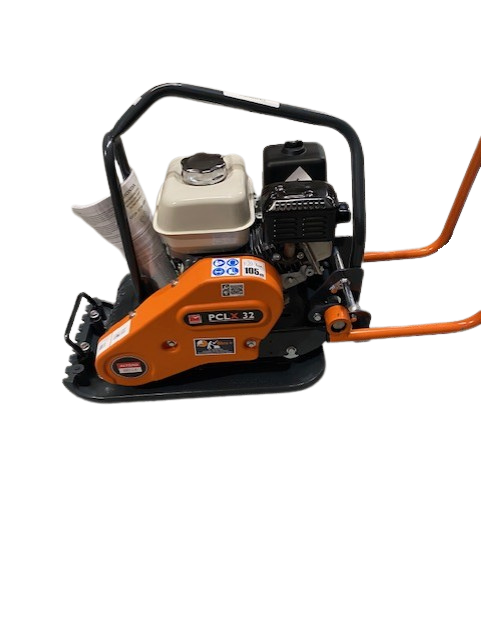

Belle PCLX 320 Plate Compactor is a mid weight professional compaction plate with high compaction performance.
Features:
- Low Hand / Arm vibration design for longer safe usage times
- The patented base design for optimised speed and manoeuvrability
- Optional removeable 12 litre water tank with a quick release design
- Oil sealed lubricated bearings for extended service life
- High Power 13 kN vibration force
- Easy to operate and control
| Weight | 64kg* |
|---|---|
| Ref | LX3271 |
| Engine | Honda GX120 Petrol |
| Engine Power | 3.2Hp/2.4kW |
| Centrifugal force | 13kN |
| Width | 320mm |
| Dimensions (W x L x H) | 320 x 950 x 935mm |
| Engine RPM | 3850 |
| Height - Operation | 935mm |
| Length - Operation | 950mm |
| Length - Storage | 790mm |
| Height - Storage | 620mm |
| Static Pressure | 416kg/m² |
| Travel Speed | 20m/min |
| Vibration Level | 2.49m/sec² |
