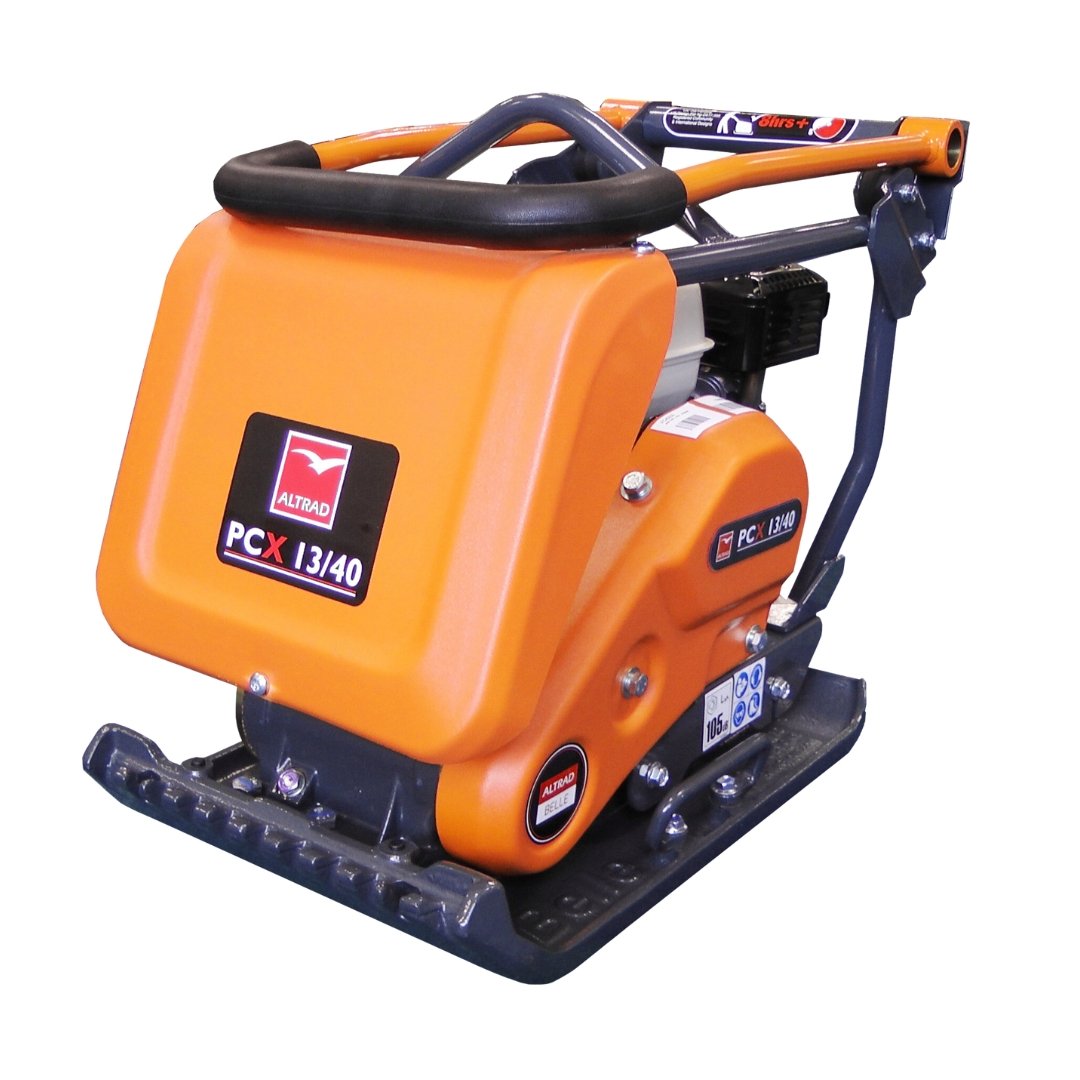

Altrad Belle PCX 13/40 Honda GX160 Petrol Plate Compactor – 400mm, 13kN
The Altrad Belle PCX 13/40 Petrol Plate Compactor is a heavyweight professional forward plate compactor designed for compacting soil, sand, gravel, asphalt and paving sub-bases. Powered by a dependable Honda GX160 four-stroke petrol engine, it combines strong compaction performance, low hand-arm vibration and excellent manoeuvrability for demanding construction and groundwork applications.
With a 400mm working width, 13kN centrifugal force and a maximum travel speed of 20 metres per minute, the PCX 13/40 is well suited to professional groundworkers, contractors, landscapers, utility teams and plant-hire operators.
Its short baseplate design improves manoeuvrability and helps achieve a consistent surface finish, particularly when working in restricted areas, around kerbs and alongside formwork.
The machine also features a foldable guide handle, reinforced centrifugal clutch, life-lubricated vibration bearings, integrated lifting points and a front lifting cage for practical everyday site use.
With a stated hand-arm vibration level of 3.2m/s², the Belle PCX 13/40 is designed to help reduce vibration transmitted to the operator during compaction work.
Daly Industrial Supply Product Code: FC4020E. Model: Altrad Belle PCX 13/40. Engine: Honda GX160. Working Width: 400mm.
Professional 13kN Compaction Performance
The Altrad Belle PCX 13/40 is engineered to deliver consistent compaction performance across a range of professional groundwork and surface-preparation tasks.
Its vibrating plate generates 13kN of centrifugal force at a frequency of 101Hz, helping consolidate suitable granular materials and prepared sub-bases.
The machine has a stated static pressure rating of 520kg/m² and a baseplate measuring 400 × 606mm.
The shorter baseplate configuration helps improve handling and surface finish, making the PCX 13/40 particularly useful for work where space and manoeuvrability are important.
Compaction guidance: The number of passes and achievable compaction depend on the material, layer thickness, moisture content and ground conditions. Follow the relevant project specifications and material requirements.
Key Features and Benefits
- Heavyweight professional forward plate compactor
- Reliable Honda GX160 four-stroke petrol engine
- Engine output of 4.9hp / 3.6kW
- 400mm compaction working width
- 13kN centrifugal compaction force
- High-frequency compaction at 101Hz
- Maximum travel speed of 20m/min
- Stated static pressure of 520kg/m²
- Low hand-arm vibration level of 3.2m/s²
- Short baseplate for improved manoeuvrability
- Designed for a consistent surface finish
- Foldable guide handle for transport and storage
- Handle can be lowered for work in restricted areas
- Reinforced centrifugal clutch
- Drive design intended to increase belt life
- Simplified drive-belt adjustment
- Life-lubricated vibration bearings
- Integrated lifting points
- Front lifting cage for site handling
- Protected spray-bar mounting area
- Integral mounting points for optional paving pad
- Optional water-spray system available
- Optional detachable wheel kit available
- Suitable for groundwork, paving and asphalt applications
- Suitable for contractors and professional hire fleets
- Petrol-powered operation without mains electricity
Suitable Applications
The Belle PCX 13/40 is designed for professional compaction work across construction, landscaping, utility and maintenance projects.
- Compacting suitable soils
- Compacting sand and gravel
- Preparing granular sub-bases
- Foundation and groundwork preparation
- Driveway construction
- Pathway and footpath preparation
- Landscaping and garden construction
- Block paving preparation and finishing
- Asphalt repair and reinstatement
- Trench reinstatement
- Utility installation and repair work
- Compaction around kerbs
- Compaction alongside formwork
- Construction-site surface preparation
- Commercial property maintenance
- Professional plant-hire applications
Accessory guidance: Use a compatible paving pad when compacting finished block paving to help protect the surface. For asphalt applications, the optional water-spray kit can help prevent hot material from adhering to the baseplate. Both accessories are sold separately.
Reliable Honda GX160 Petrol Engine
The Altrad Belle PCX 13/40 is powered by a Honda GX160 four-stroke petrol engine, providing the dependable power required for regular professional compaction work.
With a stated output of 4.9hp / 3.6kW, the GX160 engine drives the machine's vibration system for consistent operation on suitable construction and groundwork materials.
Petrol operation allows the compactor to be used outdoors on construction sites, farms, yards and other locations where mains electricity is not readily available.
Petrol engine safety: Operate the machine outdoors in well-ventilated working areas only. Petrol engines produce dangerous carbon monoxide. Never run the compactor inside buildings, garages, enclosed trenches or other poorly ventilated spaces.
Low Hand-Arm Vibration for Professional Operators
The PCX 13/40 has a stated hand-arm vibration level of 3.2m/s², reflecting its low-vibration design.
This helps reduce the vibration transmitted through the guide handle during operation, an important consideration for contractors who regularly carry out plate-compaction work.
The machine's foldable guide handle provides controlled handling and can be lowered when working close to obstacles or in restricted areas.
Vibration exposure: The stated vibration value is not a guarantee of safe operating time. Actual exposure depends on the working surface, operating conditions and time spent using the compactor. Employers and operators should assess hand-arm vibration exposure and follow applicable workplace safety requirements.
Short Baseplate for Manoeuvrability and Surface Finish
The Belle PCX 13/40 uses a baseplate measuring 400 × 606mm. Its shorter plate design helps the machine manoeuvre around site features while maintaining strong forward compaction.
The 400mm working width makes it particularly useful for pathways, narrow working areas, groundwork beside kerbs and areas around formwork or foundations.
The design also supports a consistent surface finish when preparing suitable granular sub-bases and other compactable materials.
Heavy-Duty Construction for Demanding Site Use
The Altrad Belle PCX 13/40 incorporates several design features intended to support regular professional use and simplify routine machine handling.
A reinforced centrifugal clutch helps increase drive-belt life, while the machine's belt-adjustment arrangement is designed to simplify servicing.
The life-lubricated vibration bearings reduce routine bearing lubrication requirements, helping make the compactor practical for contractors and hire fleets.
Integrated lifting points and a front lifting cage assist with handling during loading and unloading using suitable lifting equipment.
- Reinforced centrifugal clutch
- Drive arrangement designed to improve belt life
- Simplified belt adjustment
- Life-lubricated vibration bearings
- Integrated machine lifting points
- Front lifting cage
- Foldable guide handle
- Protected water-spray mounting area
- Integral paving-pad mounting points
- Optional transport-wheel compatibility
Handling information: The machine weighs approximately 85.5kg. Use suitable mechanical lifting equipment and approved lifting points when loading or unloading. Do not attempt to lift the machine manually without an appropriate handling assessment.
Optional Accessories for the Belle PCX 13/40
The Altrad Belle PCX 13/40 can be fitted with compatible accessories to suit different compaction applications.
The following accessories are optional and available separately. They are not included with the standard PCX 13/40 machine unless specifically stated at purchase.
Block Paving Pad
A compatible paving pad for use when compacting finished block paving. Helps protect the paving surface from direct contact with the steel baseplate.

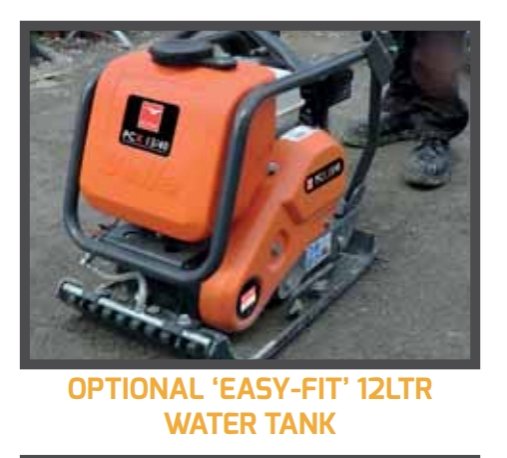

OPP/66/DIOWater-Spray Kit
Optional water-spray system for asphalt applications. Helps reduce the tendency of hot asphalt to stick to the baseplate during compaction.

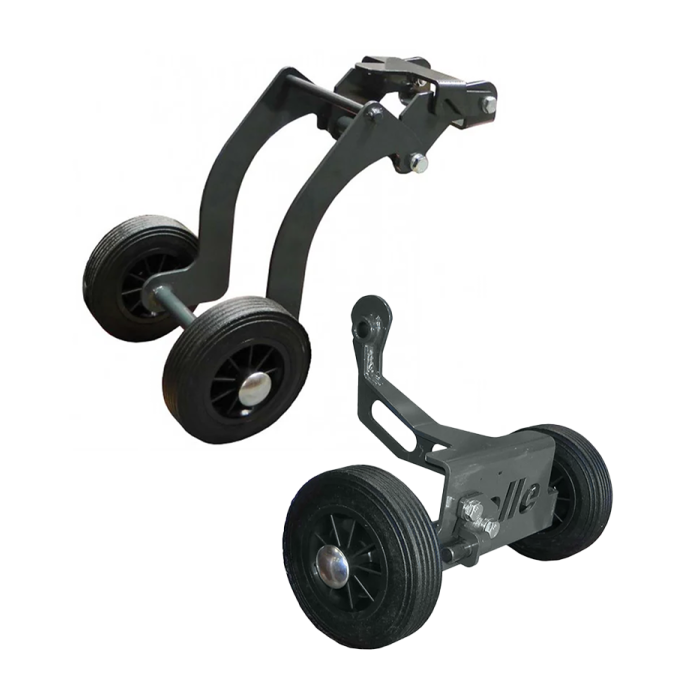

OPP/71S/DIODetachable Wheel Kit
Compatible transport-wheel accessory designed to make it easier to move the compactor around suitable site surfaces between working areas.
OPP/74/DIOChoosing the correct accessory: Contact Daly Industrial Supply with product code FC4020E to confirm accessory compatibility and availability for your Belle PCX 13/40.
Important: The paving pad, water-spray kit and detachable wheel kit are optional accessories, not standard included equipment.
Altrad Belle PCX 13/40 Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Altrad Belle |
| Model | PCX 13/40 |
| Daly Industrial Supply Product Code | FC4020E |
| Machine Type | Forward plate compactor |
| Engine Manufacturer | Honda |
| Engine Model | GX160 |
| Engine Type | Four-stroke petrol |
| Fuel Type | Petrol |
| Engine Power | 4.9hp / 3.6kW |
| Working Plate Width | 400mm |
| Baseplate Dimensions | 400 × 606mm |
| Centrifugal Force | 13kN |
| Vibration Frequency | 101Hz |
| Static Pressure | 520kg/m² |
| Maximum Travel Speed | 20m/min |
| Hand-Arm Vibration Level | 3.2m/s² |
| Sound Power Level | 105dB(A) |
| Machine Dimensions | 400 × 720 × 556mm |
| Machine Weight | 85.5kg |
| Guide Handle | Foldable |
| Clutch | Reinforced centrifugal clutch |
| Vibration Bearings | Life-lubricated |
| Lifting Features | Integrated lifting points and front lifting cage |
| Paving Pad | Optional – OPP/66/DIO |
| Water-Spray Kit | Optional – OPP/71S/DIO |
| Detachable Wheel Kit | Optional – OPP/74/DIO |
| Typical Applications | Soil, sand, gravel, granular sub-bases, asphalt and paving work |
What's Included?
The Altrad Belle PCX 13/40 is supplied as a Honda-powered professional forward plate compactor.
- 1 × Altrad Belle PCX 13/40 Forward Plate Compactor
- Fitted Honda GX160 Four-Stroke Petrol Engine
- Integrated 400mm Compaction Baseplate
- Fitted Foldable Guide Handle
- Integrated Lifting Points and Front Lifting Cage
Optional accessories are not included as standard. The block paving pad (OPP/66/DIO), water-spray kit (OPP/71S/DIO) and detachable wheel kit (OPP/74/DIO) are available separately, subject to confirmation of compatibility and availability.
Why Choose the Altrad Belle PCX 13/40?
The Altrad Belle PCX 13/40 offers a practical combination of compaction force, manageable working width and professional construction features.
Its 13kN centrifugal force and 101Hz frequency provide the compaction performance needed for a broad range of groundwork, paving preparation and reinstatement applications.
The Honda GX160 engine provides dependable petrol-powered operation, while the 400mm-wide short baseplate helps the machine manoeuvre around kerbs, formwork and restricted working areas.
With a stated 3.2m/s² hand-arm vibration level, the machine is designed to reduce vibration transferred to the operator during use.
Its reinforced centrifugal clutch, life-lubricated bearings and simplified belt adjustment support regular professional operation.
The folding guide handle, integrated lifting points and front lifting cage make transportation and handling more practical when used with suitable equipment.
Optional paving, water-spray and transport-wheel accessories allow the PCX 13/40 to be configured for different site applications.
These features make the Belle PCX 13/40 a strong choice for professional contractors, landscapers, utility teams and plant-hire businesses requiring a durable forward plate compactor.
Important Plate Compactor Safety Information
Safe Operation of the Belle PCX 13/40
- Carbon monoxide: Operate the petrol-powered compactor outdoors only. Never use it in enclosed or poorly ventilated areas.
- Hearing protection: The stated sound power level is 105dB(A). Wear appropriate hearing protection and assess workplace noise exposure.
- Hand-arm vibration: The stated vibration level is 3.2m/s². Assess operator exposure and manage operating time according to applicable workplace requirements.
- Safe footing: Maintain a stable working position and keep clear of edges, excavations and unstable ground.
- Moving components: Keep hands, feet, clothing and other objects away from moving parts.
- Hot surfaces: The engine, exhaust and baseplate may become hot during operation. Allow sufficient cooling time before maintenance or handling.
- Refuelling: Stop the engine and allow it to cool before adding petrol. Refuel away from ignition sources.
- Mechanical lifting: At approximately 85.5kg, the machine requires appropriate handling and lifting procedures. Use designated lifting points and suitable equipment.
- Transport: Secure the compactor appropriately during vehicle transport. The optional wheel kit is intended for suitable site movement.
- Block paving: Use a compatible paving pad when working on finished block paving to help prevent surface damage.
- Asphalt work: Use suitable procedures for hot asphalt and consider the compatible water-spray kit where appropriate.
- Maintenance: Stop the engine before inspections, cleaning, belt adjustments or servicing. Follow the Altrad Belle and Honda instructions.
Frequently Asked Questions
What engine is fitted to the Belle PCX 13/40?
This FC4020E version is powered by a Honda GX160 four-stroke petrol engine with a stated output of 4.9hp / 3.6kW.
What is the working width of the Belle PCX 13/40?
The PCX 13/40 has a 400mm working width, equivalent to approximately 16 inches. Its baseplate measures 400 × 606mm.
How much compaction force does the PCX 13/40 produce?
The machine produces 13kN of centrifugal force at a compaction frequency of 101Hz.
What materials can the Belle PCX 13/40 compact?
It is suitable for compacting soil, sand, gravel, suitable granular sub-bases and asphalt. A compatible paving pad should be used for finished block paving. Results depend on the material and site conditions.
Is the Belle PCX 13/40 suitable for block paving?
Yes. It can be used for suitable block-paving applications. A compatible optional paving pad should be fitted when compacting finished paving to help protect the surface.
Is a paving pad included with the PCX 13/40?
No. The block paving pad is an optional accessory. The specified accessory reference is OPP/66/DIO.
Is the water tank included?
No. The water-spray system is optional and is not included as standard. The compatible water-spray kit is listed as OPP/71S/DIO.
Why would I need a water-spray kit?
A water-spray kit is particularly useful when compacting asphalt. It helps prevent hot asphalt from adhering to the steel baseplate during operation.
Can transport wheels be fitted to the Belle PCX 13/40?
Yes. A compatible detachable wheel kit is available separately. Its accessory reference is OPP/74/DIO.
What is the hand-arm vibration level?
The stated hand-arm vibration level is 3.2m/s². Actual operator exposure will depend on the work, ground conditions and operating duration.
How much does the Belle PCX 13/40 weigh?
The Honda GX160 version weighs approximately 85.5kg. Suitable lifting and transport procedures should be used.
What is the maximum travel speed?
The PCX 13/40 has a maximum stated forward travel speed of 20 metres per minute. Actual speed depends on ground conditions and operation.
Does the Belle PCX 13/40 have a folding handle?
Yes. The machine features a foldable guide handle that helps reduce storage and transport space and can be lowered for work in restricted areas.
Is the PCX 13/40 suitable for trench and utility work?
Yes. Its 400mm working width, forward travel and short baseplate make it suitable for many trench-reinstatement and utility applications, provided the working area and material are appropriate for the machine.
Does the PCX 13/40 require an electrical supply?
No. The machine is powered by a Honda GX160 petrol engine and does not require mains electricity. It must be operated outdoors because the engine produces carbon monoxide.
What is the sound power level?
The stated sound power level is 105dB(A). Operators should use suitable hearing protection and follow applicable noise-exposure requirements.
What maintenance features does the PCX 13/40 have?
The machine incorporates a reinforced centrifugal clutch, simplified belt adjustment and life-lubricated vibration bearings. Engine and machine maintenance must still be carried out according to the manufacturer's instructions.
Is the Belle PCX 13/40 suitable for plant-hire fleets?
Yes. Its Honda petrol engine, professional construction, folding handle, integrated lifting points and service-oriented drive features make it suitable for professional plant-hire applications.
Can the Belle PCX 13/40 be used indoors?
No. The Honda GX160 petrol engine produces carbon monoxide. The compactor must not be operated indoors or in enclosed or poorly ventilated spaces.
What is the Daly Industrial Supply product code?
The Daly Industrial Supply product code for this Altrad Belle PCX 13/40 Honda GX160 Plate Compactor is FC4020E.
Can Daly Industrial Supply help with optional accessories?
Yes. Contact Daly Industrial Supply on 021 450 0051 for assistance with product information and compatibility checks for the optional paving pad, water-spray kit and detachable wheel kit.
Altrad Belle PCX 13/40 Petrol Plate Compactor – Contact Daly Industrial Supply
<| Engine | 5.5HP HONDA PETROL GX160 |
|---|---|
| Height | 85,5 kg |
| Weight | 85.8 kg |
| Noise Level | 105 dB(A) |
| Centrifugal Force | 13 kN |
| Static Pressure | 518 kg/m2 |
| Engine Power | 5.5 / 4(Hp / kW) |
| Vibration level | 3,20/4,53 m/sec2 |
| Plate size LxW | 606 x 400 mm |
