CPC-160 CIMAR Reversible Plate Compactor Honda Engine

code: CIMCPC-160

CPC-160 CIMAR Reversible Plate Compactor Honda Engine

CIMAR Reversible Plate Compactor CIMCPC-160 Our CPC-160 CIMAR Reversible Plate Compactor features excellent maneuverability, compaction & reliability c/w heavy duty lifting hook.

CIMAR Reversible Plate Compactors has 5 different choices, which are from 60kg to 405kg and installed petrol or diesel engine.

CIMAR Reversible Plate Compactors have much large market around the world.

Because they are special for compacting sand, trench, patching and so on. We believe every product an excellent performance in every worksite.

  • Hydraulic System – Hydraulic direction mechanism makes the machine forward, backward and on-spot-compaction.
  • Throttle Lever – It is made by Casting Aluminum which is more durable and comfortable for the operator.
  • Frame -The closed style frame is better to protect the engine. And the hook hides inside the frame.

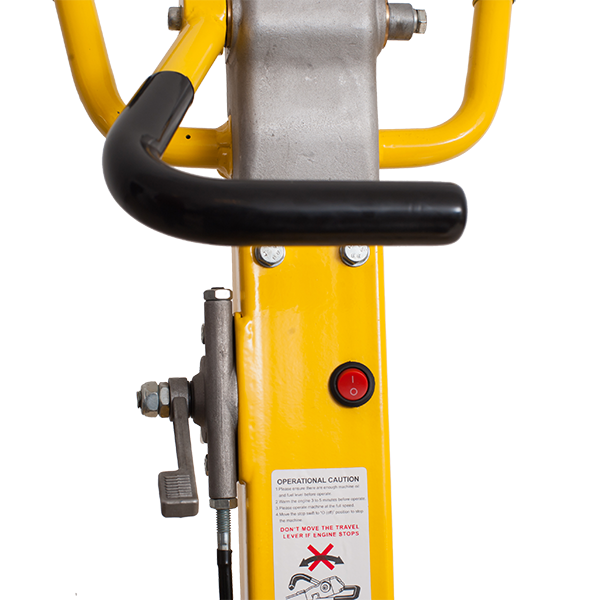

  • Handle  – Folded handle is saving space in transportation.
  • Water tank (Optional)  – With water tank, the machine can work on asphalt. Lock prevent water tank from being stolen.
  • Belt Cover – Casting aluminum belt cover is easy to cool. So life span of both engine and clutch will be long. It also prevents sand, soil and dust in.
  • Shock Absorber – Good quality shock absorber could absorb vibration efficiency. So the operator feels comfortable.
  • Wheels (Optional)  – Easy for transportation.

Model CPC 160H Engine Type Honda GX200
Centrifugal Force kN(kgf) 27(2750) Vibration Frequency Hz(vpm) 90(5400)
Plate Size L (mm) 700 H (mm) 920
W (mm) 430 Limited Gradient (%) 35
Dimension L (mm) 1130 Max.Traveling Speed (m/min) 25
Weight (Kg) 160 Max Power Output kW(ps) -
