EIBENSTOCK ESD 162 DIAMOND DRY SOFT IMPACT CORE DRILL 110v

Code: EIBESD162
Loading...

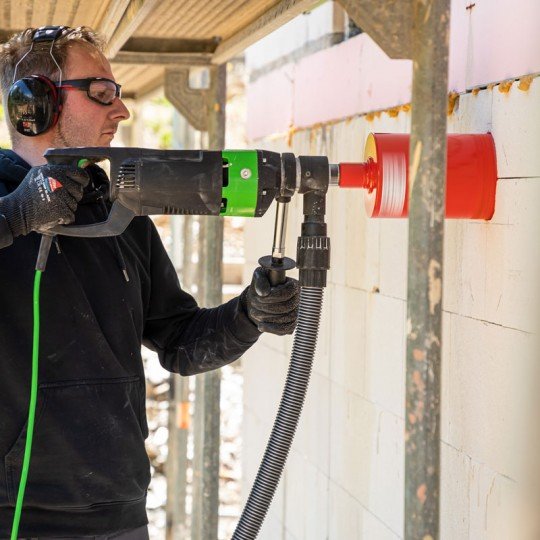

EIBENSTOCK ESD 162 DIAMOND DRY SOFT IMPACT CORE DRILL 110V

- Type: Dry diamond core drill with IHT (Impact Hybrid Technology) percussion function

- Mounting: Usable with rig-mounted, anti-vibration drill rig (up to 162mm)

- Speed: Single-speed, handheld operation with mechanical clutch

- Gearbox: Heavy-duty metal housing

- Spindle: Dual-thread (1 ¼” UNC male external, ½” BSP female internal)

- Motor Control: EDMC Pro with digital motor control, service, and overload indicator

- Dust Control: Integrated dust extraction swivel for dust-free drilling

- Carry Case: Supplied in a durable plastic carry case

Design Features:

- Specifically designed for dry drilling in hard materials such as reinforced concrete and stone

- Ideal for environments where wet drilling is not possible

- Utilizes IHT technology for high-frequency impact and faster drilling progress

- Compatible with IHT diamond core bits for optimal performance

Drilling Capacities

- Brick & Block: Up to 202mm

- Reinforced Concrete: Up to 162mm
Rated speed 1000 RPM
Spindle connection 1¼" UNC Male
Weight 6.6 kg
Noise Level 79 dBA
Vibration 4.2 m/s²
Power Rating 2200W
Dry Drilling Capacity 32-202mm
Collar Size 60mm
