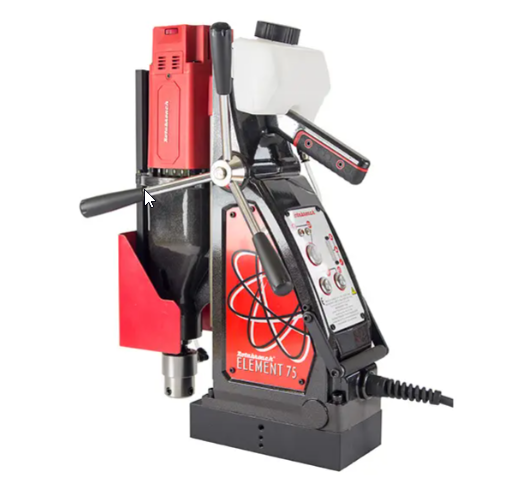

MAGNETIC DRILLS ELEMENT 75
- Powerful 1800w motor with a two speed mechanical gearbox.
- 23.5kg: Lighter and more compact than other heavy-duty drills.
- Suitable for drilling up to 75mm diameter by 75mm depth.
- CutSmart Technology – designed to protect your motor and cutter, prolonging tool life.
- CutSmart Technology – designed to protect your motor and cutter, prolonging tool life.
- Quick release interchangeable handle – allowing you to operate the mag drill from either side and improving accessibility.
- Internal cabling reduces the risk of damage and downtime for your magdrill.
- Internal cooling – keeping your mag drill cool and allowing you to drill for longer.
- Features a swivel base.
- Twist drill, threading and countersinking capabilities.
- Dual motor protection, minimising wear and downtime of this magdrill.
| Model Number | Element 75/1 / Element 75/3 |
|---|---|
| Motor Specification | 110V 1800W / 230V 1800W |
| No load RPM | Low Gear: 70 -180 RPM / High Gear: 200-500 RPM |
| Max Hole Cutting Capacity | ø75 x 75mm Deep – 26mm with MT Drill |
| Overall Dimension | Height: 545mm / Width: 230mm with Capstan / Length: 460mm with Guard |
| Machine Weight | 23.5kg |
| Magnetic Adhesion | 18,500N |
| Magnet Size | 220mm x 114mm |
| Safety Features | Cutsmart™ Technology / Fixed Guard / Magnetic Detection / Mechanical Clutch |
