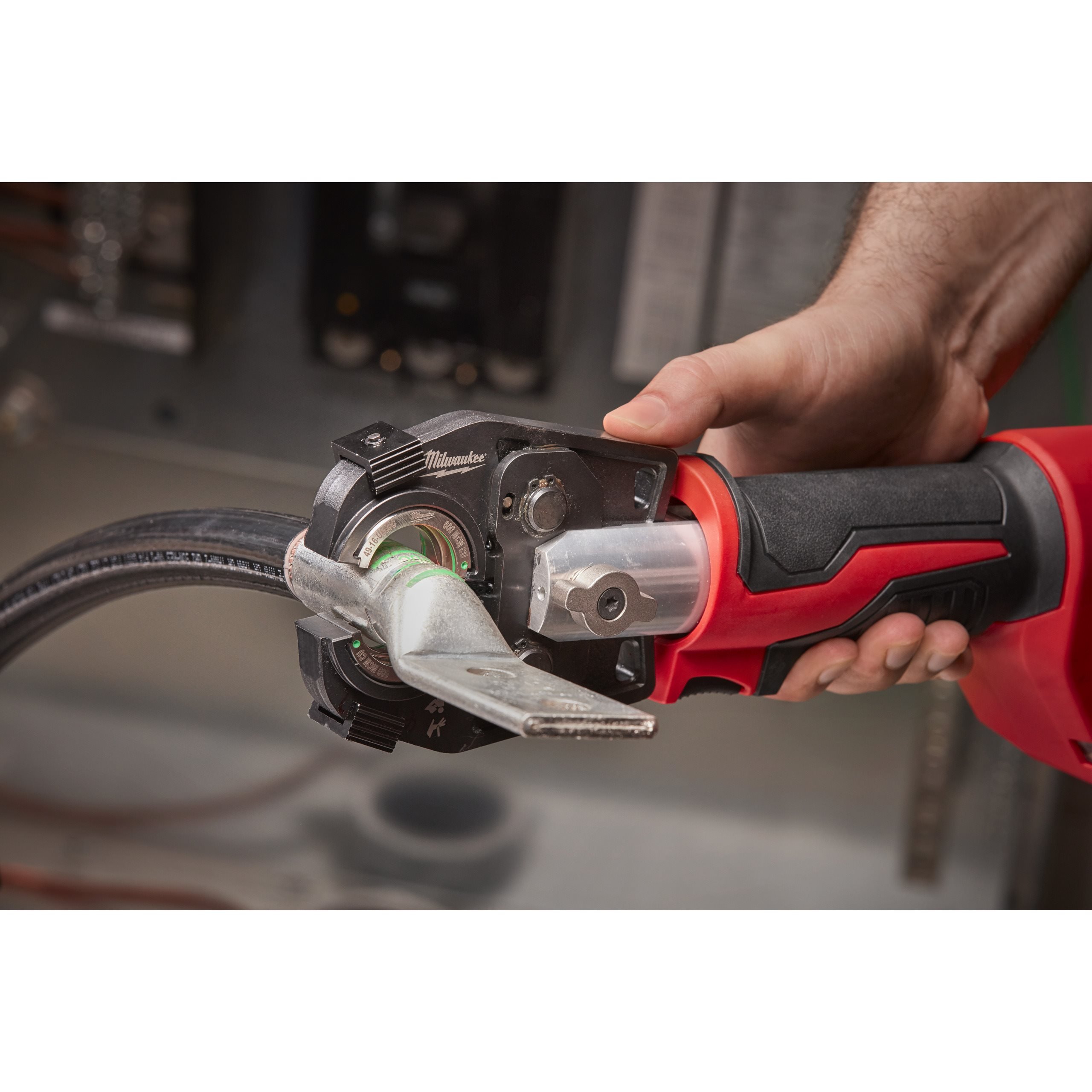

MILWAUKEE M18 HCCT-201C CABLE CRIMPER
Features:
Powerful Crimping: Crimps connectors up to 300 mm² in under 3 seconds with 53 kN of force.
Precision Jaw Design: Revolutionary jaw securely holds the connector, ensuring optimal cable alignment.Versatile 2-in-1 Tool: Interchangeable jaws for both crimping and CU/AL cable cutting.
One-Hand Operation: Balanced design and simple controls for easy, one-hand use.
Compact & Flexible: Slim, in-line jaw with a 350° rotatable head for crimping in tight spaces.
PFM™ Technology: Predictive Force Monitoring automatically adjusts pressure for each connector, indicated by a green light for optimal crimp.
Universal Die Compatibility: Fits standard 60 kN U-Dies (C-shaped) for maximum flexibility.
Smart Tracking & Reporting: Records every crimp for professional reports via the ONE-KEY™ app and adaptor.
Tool Tracking & Security: ONE-KEY™ provides free cloud-based tracking, inventory management, and remote locking for added security.
Battery Management: Pre-crimp battery check ensures enough charge for each crimp.
Rugged Design: Sealed electronics protect against dirt, dust, and moisture for reliable use in harsh environments.
Advanced Power System: Brushless motor, REDLITHIUM™ battery, and REDLINK™ electronics for extended power, runtime, and durability.
Flexible Battery Compatibility: Works with all MILWAUKEE® M18™ batteries for convenience.
| Charger Included | M12-18 C |
|---|---|
| Sound pressure level (Lpa) (dB(A)) | 74.59999999999999 |
| Sound power level (Lwa) (dB(A)) | 85.59999999999999 |
| Press force [kN] | 53 |
| Press cycles | 30,000 |
| Crimps per battery | > 250 on a 70 mm² copper connector |
| Crimping time [s] | < 3 |
| Crimping range [mm²] | 16 - 300 |
| Crimping force [kN] | 53 |
| VIBRATION UNCERTAINTY (M/S²) | 1.5 |
| SOUND PRESSURE LEVEL UNCERTAINTY (DB(A)) | 3 |
| SOUND POWER LEVEL UNCERTAINTY (DB(A)) | 3 |
| Battery pack capacity (Ah) | 2 |
| EAN 240V | 4002395138838 |
| Article Number 240V | 4933451195 |
| VIBRATION LEVEL (M/S²) | 0.77 |
| WEIGHT WITH BATTERY PACK (EPTA) (KG) | 3.7 (M18 B2) |
| Kit included | 1 x M18 B2 Battery pack, M12-18 C Charger, Kitbox |
| Standard equipment | Crimping jaw |
| No. of batteries supplied | 1 |
| Voltage (V) | 18 |
| Supplied in | Kitbox |
| Charger supplied | 40 min |
| Battery type | Li-ion |
