Spare Parts for EBAC BD150 D/V Industrial Dehumidifier

Categories

Spare Parts for EBAC BD150 D/V Industrial Dehumidifier

Code: SPDEPT001

Select Size

Ref 1 Defrost Timer - Multifunction TStat/Time Ref 1 Defrost Timer - Multifunction TStat/Time
Ref 2 Operating Instructions Ref 2 Operating Instructions
Ref 3 1/4" Charge Valve Ref 3 1/4" Charge Valve
Ref 4 Capilliary Tube - 0.064" Ref 4 Capilliary Tube - 0.064"
Ref 5 Insul Tube 3/8" Dia Ref 5 Insul Tube 3/8" Dia
Ref 6 Inseal Sponge Seal - 3mm X 15mm Ref 6 Inseal Sponge Seal - 3mm X 15mm
Ref 7 Inseal Sponge Seal - 3mm X 50mm Ref 7 Inseal Sponge Seal - 3mm X 50mm
Ref 8 Grey Rubber Foam Ref 8 Grey Rubber Foam
Ref 9 Neopreen Sponge - 12mm X 2mm Ref 9 Neopreen Sponge - 12mm X 2mm
Ref 10 Condenser Coil Ref 10 Condenser Coil
Ref 11 Evaporator Coil Ref 11 Evaporator Coil
Ref 12 Reversing Valve Ref 12 Reversing Valve
Ref 13 Filter Dryer Ref 13 Filter Dryer
Ref 14 Fan Motor - 110V Ref 14 Fan Motor - 110V
Ref 15 MY4 Relay - 230V Ref 15 MY4 Relay - 230V
Ref 16 Solenoid Coil - 110V Ref 16 Solenoid Coil - 110V
Ref 17 Rotary Switch Ref 17 Rotary Switch
Ref 18 Voltage Protection Capacitor Ref 18 Voltage Protection Capacitor
Ref 19 Transformer Ref 19 Transformer
Ref 20 Mains Cable (Per Metre) Ref 20 Mains Cable (Per Metre)
Ref 21 Terminal Block - Faston Ref 21 Terminal Block - Faston
Ref 22 Klambush Ref 22 Klambush
Ref 23 20mm Nut Ref 23 20mm Nut
Ref 24 Cable Tie Base Ref 24 Cable Tie Base
Ref 25 20mm Cable Gland Ref 25 20mm Cable Gland
Ref 26 Jumper Socket (Programme Selection) Ref 26 Jumper Socket (Programme Selection)
Ref 27 Run Capacitor (Aluminium or White) Ref 27 Run Capacitor (Aluminium or White)
Ref 28 Start Capacitor (Blue or Black) Ref 28 Start Capacitor (Blue or Black)
Ref 29 Push Button Ref 29 Push Button
Ref 30 Fan Blade Ref 30 Fan Blade
Ref 31 Wheel 300mm Dia Ref 31 Wheel 300mm Dia
Ref 32 Clip Nut Ref 32 Clip Nut
Ref 33 Starlock Washer - 1" Uncapped Ref 33 Starlock Washer - 1" Uncapped
Ref 34 Starlock Washer - 1" Capped Ref 34 Starlock Washer - 1" Capped
Ref 35 Cover Panel Screw Ref 35 Cover Panel Screw
Ref 36 Contactor - 110V Ref 36 Contactor - 110V
Ref 37 12A Circuit Breaker Ref 37 12A Circuit Breaker
Ref 38 Press To Reset Disc Ref 38 Press To Reset Disc
Ref 39 Terminal Block Ref 39 Terminal Block
Ref 40 Cover Panel Washer Ref 40 Cover Panel Washer
Ref 41 Compressor - R454c - 110V Ref 41 Compressor - R454c - 110V
Ref 42 Compressor - Terminal Cover Ref 42 Compressor - Terminal Cover
Ref 43 Compressor - Terminal Packing Ref 43 Compressor - Terminal Packing
Ref 44 Compressor - Terminal Nut Ref 44 Compressor - Terminal Nut
Ref 45 Compressor - Mounting Foot Ref 45 Compressor - Mounting Foot
Ref 46 Electrical Panel Ref 46 Electrical Panel
Ref 47 Drain Tray Assembly (Green) Ref 47 Drain Tray Assembly (Green)
Ref 48 Left Hand Side Cover Ref 48 Left Hand Side Cover
Ref 49 Right Hand Side Cover Ref 49 Right Hand Side Cover
Ref 50 Fan Housing Ref 50 Fan Housing
Ref 51 Motor Bracket (2 Pieces) Ref 51 Motor Bracket (2 Pieces)
Ref 52 Top Cover Ref 52 Top Cover
Ref 53 Insul Tube 54mm Dia Ref 53 Insul Tube 54mm Dia
Ref 54 Terminal Block Ref 54 Terminal Block

Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading... Loading Prices..

Please contact us to request a quote for this item.

Spare Parts for EBAC BD150 D/V Industrial Dehumidifier

SPDEPT001

A sales representative will contact you within 2 working days.

Already have an account?

Click here to login.

Keep up to date with latest products
Check stock and prices conveniently any time
Quick order facility
View your account history and statement

Request sent

Continue Shopping

Product Description

Product Description

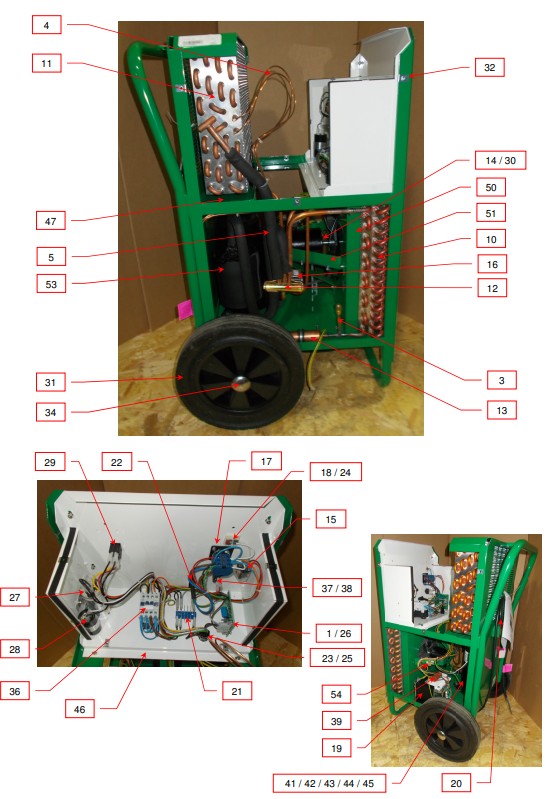

Parts Drawing & List Here
